Selecting the proper windlass involves more than just matching size to boat — it’s about ensuring smooth anchor deployment, reliability under load, and peace of mind in any situation. Whether it’s a high-torque vertical unit or a deck-mounted horizontal model, your choice affects safety, efficiency, and lifespan. Here’s how to match your vessel to the right Lofrans windlass solution.
Vertical vs Horizontal — Why It Matters
Vertical Windlasses (e.g., X1, SX1, X2, SX2, up to Ercole Verticale) mount partly below-deck, saving deck space and offering better chain alignment. However, they require at least 300 mm of free locker depth for smooth chain drop. Choose vertical when:
- You’re outfitting a performance yacht or powerboat
- You want quiet, efficient operation
- You prefer minimal above-deck footprint

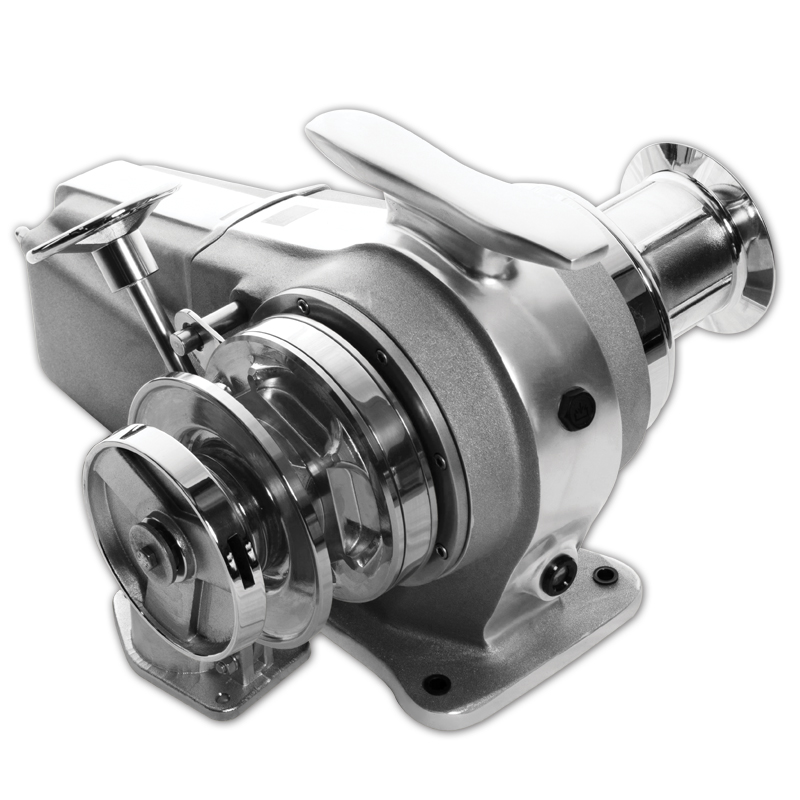

Horizontal Windlasses (like KOBRA, DORADO, FALKON, ERCOLE, TITAN) sit fully on deck and are ideal when chain locker clearance is tight or inaccessible. They’re simpler to install, reliable, and perfect for retrofits or classic builds.
Know Your Models

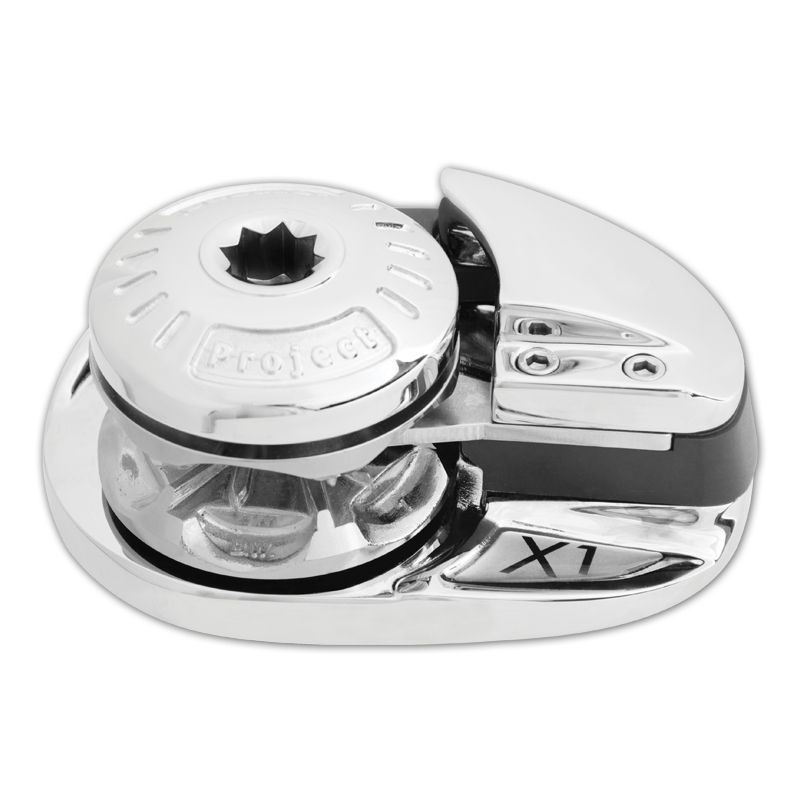

Vertical Range: X & SX Series
X1/SX1, X2/SX2, X3/SX3, X4/SX4, Ercole Verticale
X-series use mirror-polished bronze; SX-series are stainless AISI 316L
Options with integrated drum (rope + chain) or gypsy-only
High-end models (X4, Ercole, SX4/5) made for yachts over 55 ft
Horizontal Range
KOBRA, DORADO, FARMED, ERCOLE, SUPER ERCOLE, TITAN
Manufactured from anodized marine-grade aluminum with hot-forged components
Power options: 12/24 V DC or 230 V AC (some models offer hydraulic)
Classic worm-gearbox design ensures quiet operation—manual override included for safety
Key Technical Considerations
- Locker depth: for vertical models ensure ≥ 300 mm clear
- Boat length/anchor size: match torque/load specs—vertical SX1 suits 18–40 ft, Ercole handles large anchors for 55′+ yachts
- Marine environment: stainless (SX-series) for corrosion resistance; bronze (X-series) for classic aesthetics
- Rope use: models X1–X3 can accept rope + chain warps
- Drum vs Gypsy: opt for drum units if using rope/chain mixed rode
Accessories That Make a Difference
Enhance performance and safety with windlass accessories your crew will appreciate:
- Foot switches (inox or plastic) and control plates (Type C/L)
- Radio remotes for safe, hands-free operation
- Automatic free-fall units (available for KOBRA/CAYMAN) to quickly drop anchor
- Maintenance kits (e.g., for GECKO) to preserve gear and grease properly
- Bow rollers with gimballed ends to reduce wear and vibration
These are all stocked in the Windlasses & Accessories section.
Maintenance & Reliability
Lofrans vertical windlasses include watertight ball bearings, conical clutch discs, and optional chain-counter sensors for long-term precision. Horizontal models feature oil-lubricated gearboxes and emergency manual overrides.
Ensure annual servicing, saltwater rinsing, and lubricants from GECKO Maintenance Kits to maintain peak performance season after season.
Final Recommendations
- Evaluate locker space: choose vertical for ≤ 300 mm depth; horizontal when clearance is limited.
- Consider material needs: stainless for anti-corrosion, bronze for traditional styling.
- Pick controls: foot switches or remote units based on helm layout.
- Don’t skip accessories: footplates, remotes, maintenance kits extend service life.
Conclusion
Choosing the right windlass means selecting one you trust — in storms, at anchor, without hesitation. With Lofrans vertical and horizontal models, coupled with quality accessories from Gaelix Marine Service, you’re not guessing – you’re equipping with confidence.
Explore our full range of Windlasses & Accessories or reach out via our main page to configure the perfect setup for your boat.
